Gas and Dust Sensor

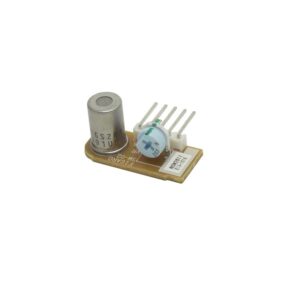

1. Product: Figaro NGM2611-E13 Methane Sensor Module factory calibrated
2. Operating conditions: 0˚~40˚C, 30~95%RH
3. Circuit current: 10mA (max)
4. Reference voltage: 1.0~4.0V DC (NOTE 2)

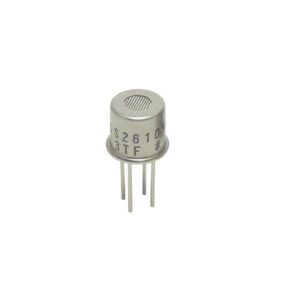

1. Product: Figaro TGS2610-C00 LP Gas Sensor
2. Heater Current: 56±5mA
3. Heater Resistance: approx 59Ω at room temp
4. Heater Voltage: 5.0±0.2V DC
5. Load Resistance: variable 0.45 kΩ min.

1. Product: Figaro TGS5042-A00 Carbon Monoxide Sensor Industrial safety
2. Target Gases: Carbon monoxide
3. Typical detection range: 0 ~ 10,000ppm
4. Output current in CO: 1.2~2.4nA/ppm
5. Baseline offset(*1): <±10ppm equivalent

1. Model No.: TGS6812-D00
2. Heater Current: 175mA (typical)
3. Heater power consumption:
4. Target Gases: Hydrogen, methane, iso-butane

1. Product: Gas Detection Sensor
2. Operating range: 0 ppm to 32000 ppm
3. Operating temperature: 0–50°C
4. Supply voltage: 12.0 V for the emitter and 3.3 V for other components
5. Advanced compensation and self-calibration algorithms

1. Product: Lead-free oxygen sensor AOX3000
2. Output Current(mA): 0.10±0.03
3. Zero Current: ＜1.2% vol.O2
4. Response Time（T₉₀）: <15 s

This sensor is sensitive to

1. CO ( ~ 1 to 1000 ppm).
2. Ammonia (~ 1 to 500 ppm).
3. Ethanol (~ 10 to 500 ppm).
4. H2 (~ 1 – 1000 ppm).
5. Methane / Propane / Iso-Butane (~ 1,000++ ppm).

1. Type Air Quality ,Gas
2. Compatibility mikroBUS
3. Click board size M (42.9 x 25.4 mm)
4. Input Voltage 3.3V or 5V

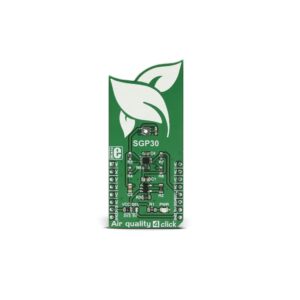

1. Interface: I2C
2. Compatibility: MicroBUS
3. Click board size:  42.9 x 25.4 mm
4. Input Voltage 3.3V,5V

1. Type Air Quality, Gas
2. On-board modules MQ-135 sensor
3. Interface Analog
4. Compatibility mikroBUS
5. Click board size M (42.9 x 25.4 mm)
6. Input Voltage 3.3V, 5V

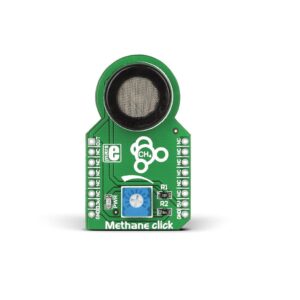

1. Compatibility: mikroBUS
2. Click board size: (42.9 x 25.4 mm)
3. Input Voltage 3.3V,5V
4. Potentiometer for calibration

1. Type: LPG Gas Sensor
2. Interface: Analog
3. Compatibility mikroBUS
4. Click board size:  42.9 x 25.4 mm
5. Input Voltage: 3.3V,5V
