- 2-phase stepper motors up to 2.8A coil current (peak), 2A RMS
- STEP/DIR Interface with 8, 16, 32 or 64 microstep pin setting
- Smooth Running 256 microsteps by MicroPlyer interpolation
- StealthChop2 silent motor operation
- Spread Cycle highly dynamic motor control chopper
- StallGuard4 load and stall detection for StealthChop
- Cool Step current control for energy savings up to 75%
- Low Power Standby to fit standby energy regulations
-36%
Motors | Drivers | Pumps | Actuators

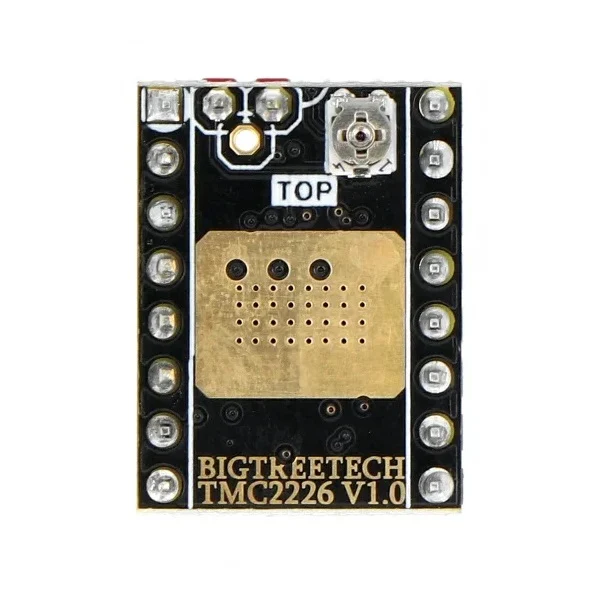

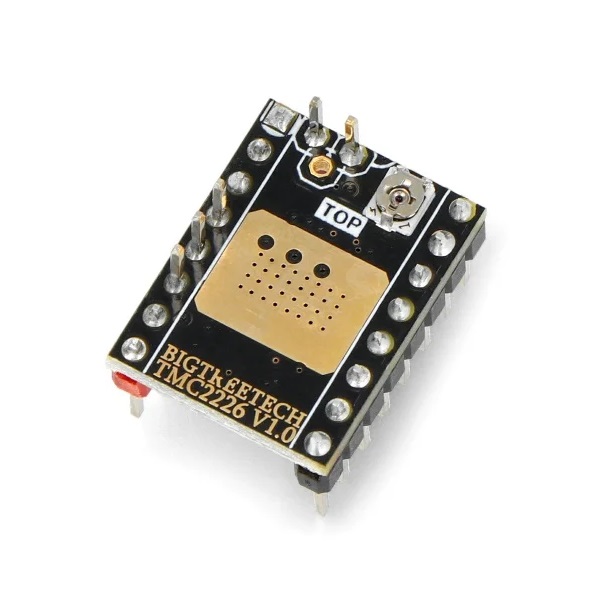

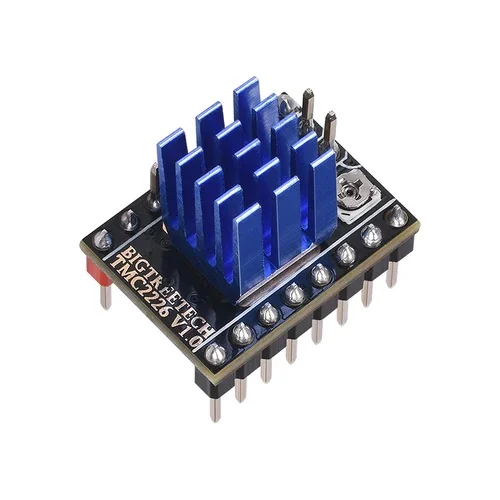

BIGTREETECH BTT TMC2226 V1.0 Stepper Motor Driver
- 2-phase stepper motors up to 2.8A coil current (peak), 2A RMS
- STEP/DIR Interface with 8, 16, 32 or 64 microstep pin setting
- Smooth Running 256 microsteps by MicroPlyer interpolation
- StealthChop2 silent motor operation
- Spread Cycle highly dynamic motor control chopper
- StallGuard4 load and stall detection for StealthChop
- Cool Step current control for energy savings up to 75%
- Low Power Standby to fit standby energy regulations
₹1,779.00 ₹2,779.00
Based on 0 reviews
Be the first to review “BIGTREETECH BTT TMC2226 V1.0 Stepper Motor Driver”
