- Operating Voltage: 3.3V~5V
- Total Rotating Angle: 360°
- Pulses Per Revolution: 20
- Interface: two Gravity connectors; I2C
- Cascadable Device Number: 4
-11%
Based on 0 reviews

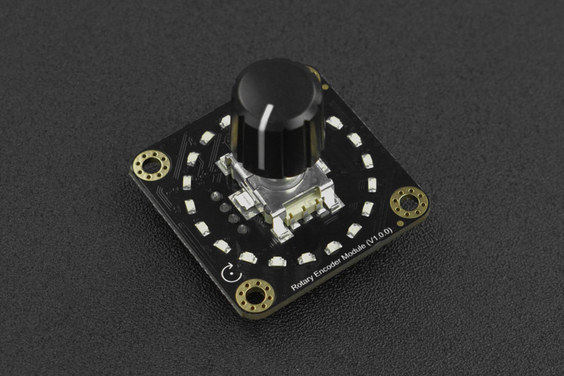

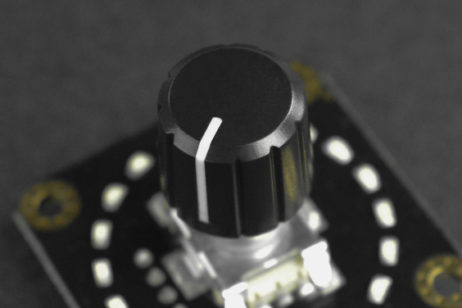

Be the first to review “DFRobot Gravity: 360 Degree Rotary Encoder Module”
