- Dimension: 2.5 x 1.5 x 1.5 cm.
- Receiving angle: 90 °.
- Working voltage: 2.7 ~ 5.5V.
- Frequency: 37.9KHz
- Receiving range: 18m.
- Weight: 4 gm.
-37%
Based on 0 reviews

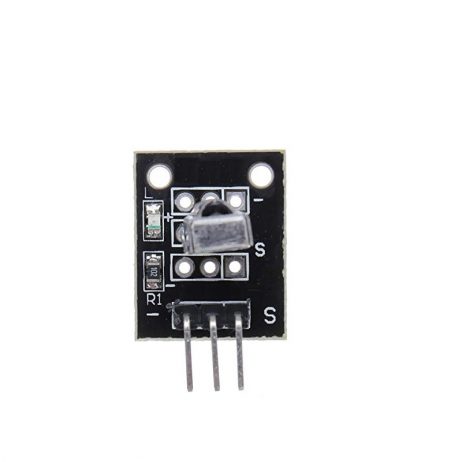

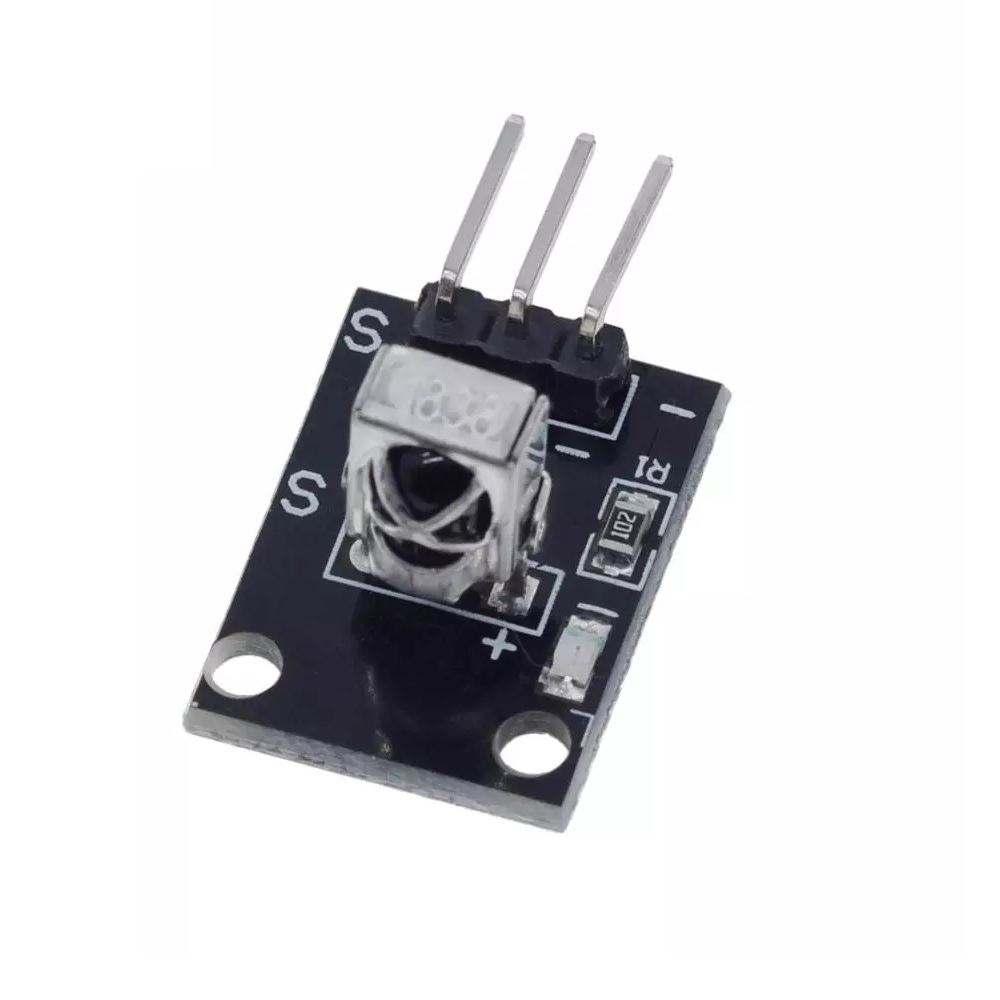

Be the first to review “Infrared IR Sensor Receiver Module for Arduino”
