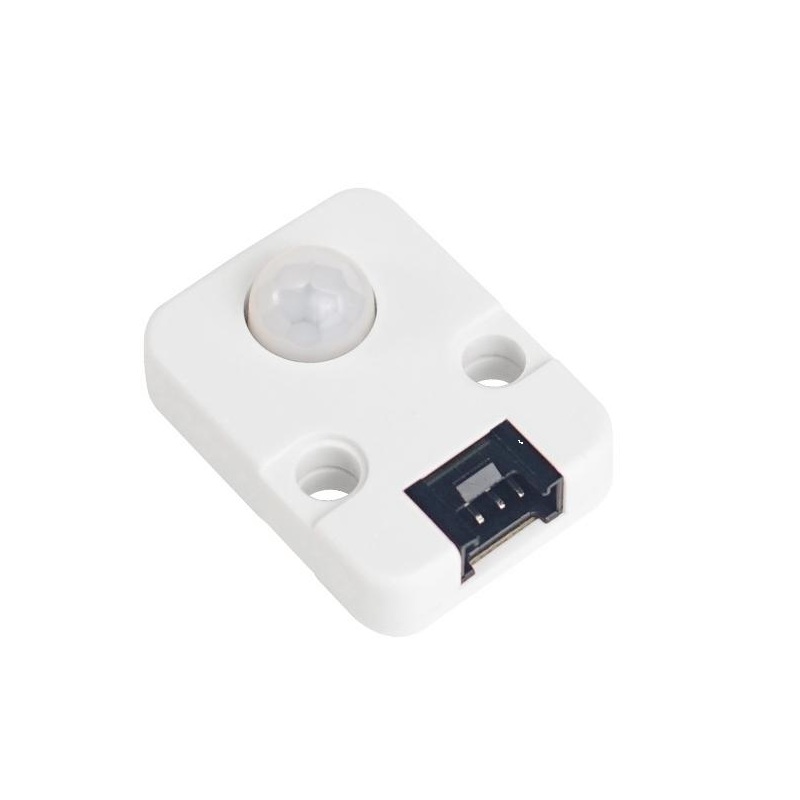

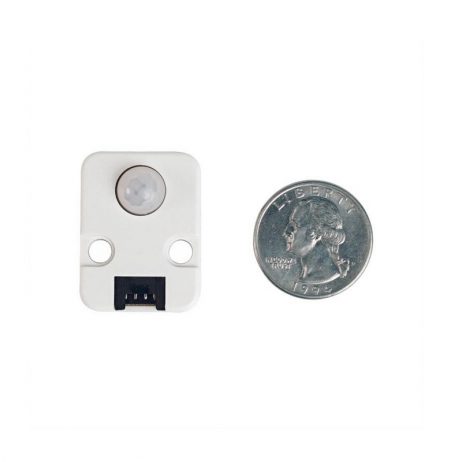

- Compatible With: M5 Core
- Two Lego Holes for Installations
- Â Detecting Distance 500cm
- Latency Time: 2sec
-12%
Based on 0 reviews
Be the first to review “M5 Stack PIR Motion Sensor”
Related products
-
DIY Learning and Robot Kits, Sensors
Arduino Sensors Combo of 5 Kit
This is a basic combo for Arduino and Robotics starter. This set can be used for obstacle sensing cars, Ultrasonic radars, school projects i.e. automatic barrier, automatic light, etc. This combo includes an ultrasonic sensor, motion sensor, IR obstacle sensor, LDR, SG90 Servo motor.
HC-SR04-Ultrasonic Distance Measuring Sensor is a very popular sensor that is found in many applications where it requires measuring distance and detect objects.
HC-SR501 PIR Motion Detector Sensor Module is a pyroelectric device that detects motion by measuring changes in the infrared levels emitted by surrounding objects. This motion can be detected by checking for a high signal on a single I/O pin.
IR sensor module is adaptable to the environment, with a working voltage of 3.3 V to 5 V. It has a pair of infrared transmitting and receiving tubes when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving by the tube.
Photoresistor also is known as LDR(Light Dependent Resistor) as the names imply, changes the resistance with the variation in the amount of light. This particular photoresistor has a resistance of 5-10k Ohm in light and about 500k Ohm resistance in the dark.
Micro Servo 9GÂ is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat, and truck use.
SKU: n/a -
Sensors
HC-05 Bluetooth Wireless UART Module
HC-05 is a Bluetooth Transceiver Module and has TTL Output. HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly. This Bluetooth module is a completely qualified Bluetooth V2+Enhanced Data Rate (EDR). It is 3Mbps Module with 2.4GHz radio transceiver and baseband. It has CSR Bluecore 04, an external single-chip Bluetooth system with CMOS technology and AFH, Adaptive Frequency Hopping, feature.
The HC-06 module is a slave only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.
Specification and Features:
- Voltage supply: 3.5v to 5v
- Working current: matching for 30 mA, matching the communication for 8 mA.
- Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
- With the integrated antenna and edge connector
- Sensitively: -80dBm
- RF Transmit Power: up to +4dBm
- Supported baud rate: 9600, 19200, 38400, 57600, 115200, 230400 and 460800
- Slave default baud rate: 9600
- Data bits: 8
- Stop bit: 1
- Parity: no parity
- A programmable input-output control
- Supported device: laptop, desktop, mobile, tablet
- Protocol: IEEE802.15.1
- Dormancy current: no dormancy.
- Bluetooth module HC-05 Master and slave Two in one module.
- Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
- Bluetooth protocol: Bluetooth Specification v2.0+EDR
- Security: Authentication and encryption.
SKU: n/a -
DIY Learning and Robot Kits, Sensors
AEROKART INDIA -Smart Dustbin Project Components – Arduino Project
-33%
DIY Learning and Robot Kits, SensorsAEROKART INDIA -Smart Dustbin Project Components – Arduino Project
This combo containing all products needed to make a smart dustbin that opens automatically when someone comes near to the dustbin.
The Arduino Uno R3 Compatible Board is a microcontroller board that is based on the ATmega328. Arduino Uno has 14 digital input or output pins, 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.This HC-SR04-Ultrasonic Distance Measuring Sensor is a very popular sensor that is found in many applications where it requires measuring distance and detect objects. The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do. The module has two eyes-like projects in the front which form the Ultrasonic transmitter and Receiver.
The Micro Servo 9G is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight.
This is the combo of 20CM Wire Color Jumper Cable, M-M, M-F, F-F 10PCS of wire in each strip of cable. It is very flexible and easily detachable to no. of wires to your requirement. Mostly it can be used for Orange Pi, Banana Pi, Raspberry Pi, Arduino, and other mini PC and development boards.
This is a general 9v Battery With Battery Snap Connector to DC barrel jack adapter for all your project and application needs. One can use this adapter to power up any DC barrel jack-based power connector using a standard 9V battery.
Package Includes:
1 x Arduino UNO R3 Compatible Board With Cable
1 x Ultrasonic Module HC-SR04 Distance Measuring Sensor
1 x Tower Pro 9G Micro Servo Motor
1 x HW Battery 9V With Barrel Jack Connector
1 x Combo of 3 type Jumper Cables | F-F | F-M | M-M
Code for the Smart Dustbin:
Do not forget to install Servo.h Library. without this library, code will not compile in Arduino IDE software.
For more details please check this article on Smart Dustbin.
#include //servo library Servo servo; int trigPin = 5; int echoPin = 6; int servoPin = 7; int led= 10; long duration, dist, average; long aver[3]; //array for average void setup() { Serial.begin(9600); servo.attach(servoPin); pinMode(trigPin, OUTPUT); pinMode(echoPin, INPUT); servo.write(0); //close cap on power on delay(100); servo.detach(); } void measure() { digitalWrite(10,HIGH); digitalWrite(trigPin, LOW); delayMicroseconds(5); digitalWrite(trigPin, HIGH); delayMicroseconds(15); digitalWrite(trigPin, LOW); pinMode(echoPin, INPUT); duration = pulseIn(echoPin, HIGH); dist = (duration/2) / 29.1; //obtain distance } void loop() { for (int i=0;i<=2;i++) { //average distance measure(); aver[i]=dist; delay(10); //delay between measurements } dist=(aver[0]+aver[1]+aver[2])/3; if ( dist<50 ) { //Change distance as per your need servo.attach(servoPin); delay(1); servo.write(0); delay(3000); servo.write(150); delay(1000); servo.detach(); } Serial.print(dist); }SKU: n/a
