- Power supply voltage: DC5 ± 2V
- Sensitivity: 0.5V / (0.1mg / m3)
- The minimum detection level of particles: 0.8 m
- Clean air voltage: 0.9V typ.
- Low consumption current (Icc: MAX. 20 mA)
- The presence of dust can be detected by the photometry of only one pulse
- Enable to distinguish smoke from house dust
-20%
Sensors

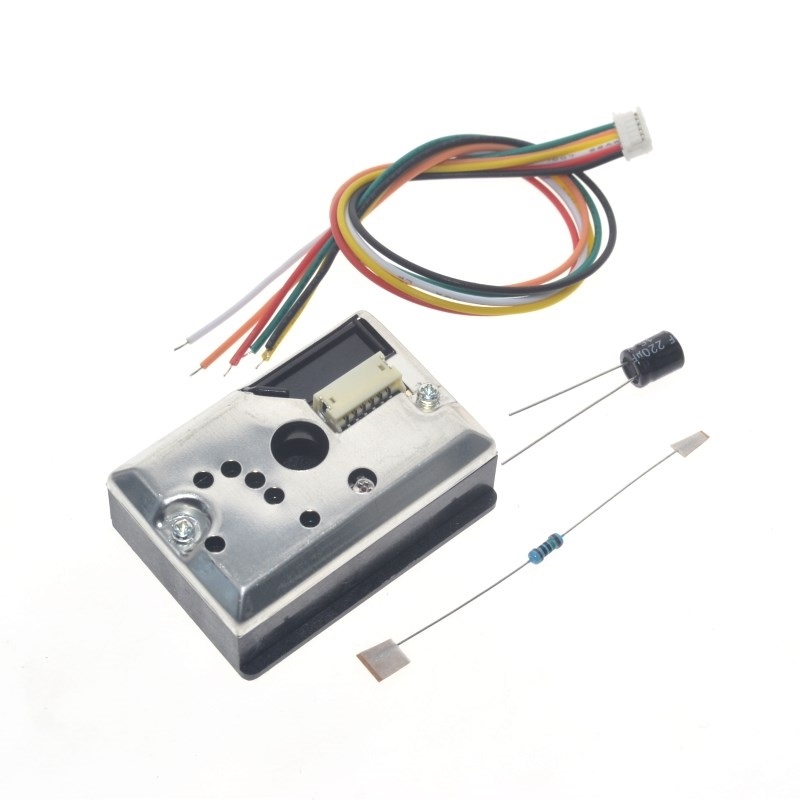

PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor
- Power supply voltage: DC5 ± 2V
- Sensitivity: 0.5V / (0.1mg / m3)
- The minimum detection level of particles: 0.8 m
- Clean air voltage: 0.9V typ.
- Low consumption current (Icc: MAX. 20 mA)
- The presence of dust can be detected by the photometry of only one pulse
- Enable to distinguish smoke from house dust
₹809.00 ₹1,009.00
Based on 0 reviews
Be the first to review “PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor”
